Electrical Winding Machine LV Transformer Copper Foil Winding Machine

Brand Name : STT

Model Number : BRJ1200-2

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Delivery Time : 45 days

Packaging Details : seaworth packing

Name : transformer foil winding machine

Usage : winding foil coil

Cu foil thickness : 0.2 ~ 2.0mm

Al foil thickness : 0.3 ~ 3.0mm

Welding mode : TIG

Welding machine : 1 set

Color : as requested

Warranty : 12 months

Contact Now

Electrical Winding Machine LV Transformer Copper Foil Winding Machine

Description of copper foil winding machine BRJ1200-2

Low voltage transformer copper foil winding machine BRJ1200-2 can handle:

Two layers of copper foil strip with thickness from 0.2 mm to 2.0mm
Two layers of Aluminium foil strip with thickness from 0.3mm to 3.0 mm
Maximum foil width 1200mm
Two layers of foil
Two layers of insulation paper
Big power 22kw motor

The copper foil winding machine is provided with

Two sets of foil decoilers
Two insulation decoilers
Photoelectric sensors
Pressing rollers
Control system based on PLC
Touch screen
Foot pedal, which can switch the rotating direction
TIG welding unit

Main Components of copper foil winding machine BRJ1200-2

Main frame
Winding unit
Foil decoiler
Insulation decoiler
End-fill strip feeder
Cleaning system
Cutting system
Edge alignment system
Automatic welding unit
Electronic control system

Technical Parameters of copper foil winding machine BRJ1200-2

Typical standard specifications of copper foil winding machine BRJ1200-2 are shown below, however the foil winding machine can also be manufactured as requested.

Foil width:	200 - 1,200mm
Maxinum Wounded Coil OD:	Ø1,000mm
Conductor Material:	Copper or Aluminum strip
Al Foil Thickness:	0.3 - 3.0 mm
Cu Foil Thickness:	0.2 - 2.0 mm
Conductor Material OD.:	Ø1,000mm
Conductor Material ID.:	500mm
Foil Decoiler Expanding Range:	Ø 420-520mm
Winding Power:	30KW
Welding Mode:	TIG
Cutting Mode:	Electric rolling shear
Insulation Decoiler:	Expandable (pneumatic open/close action)
End-fill Strip Feeder:	8 pcs
Edge Alignment System:	Photoelectric sensing automatic rectifying deviation
User Interface:	10inch (254mm) touch screen
Counting Turns Range:	0 - 9999.9

Electrical Winding Machine LV Transformer Copper Foil Winding Machine

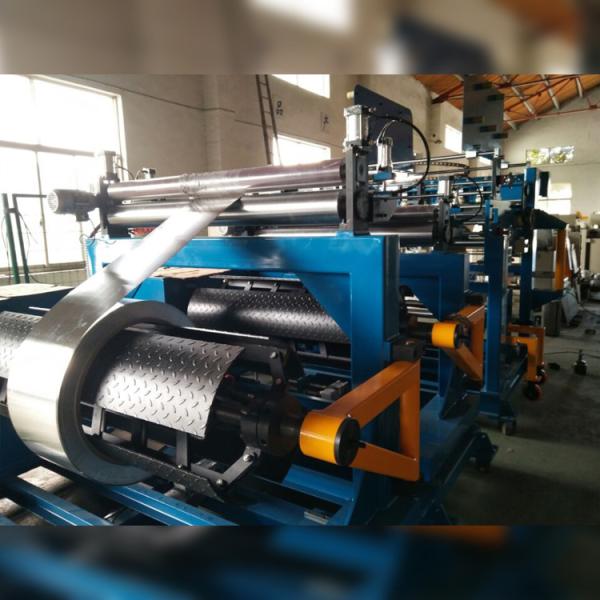

Fig 1: Copper foil winding machine BRJ1200-2's side view

Electrical Winding Machine LV Transformer Copper Foil Winding Machine

Fig 2: Copper foil winding machine BRJ1200-2's back view

Electrical Winding Machine LV Transformer Copper Foil Winding Machine
