Programmable Transformer Coil Winding Machine 800mm Transverse Length

Brand Name : STT

Model Number : ZPX800

Certification : CE, etc

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 35 days

Packaging Details : seaworthy packing

Name : transformer coil winding machine

Usage : winding coil

Winding width : 0 - 800mm

Winding speed : 0- 160rpm

Color : customizable

Warranty : one year

Winding motor : 4kw

Servo motor : 0.75kw

Contact Now

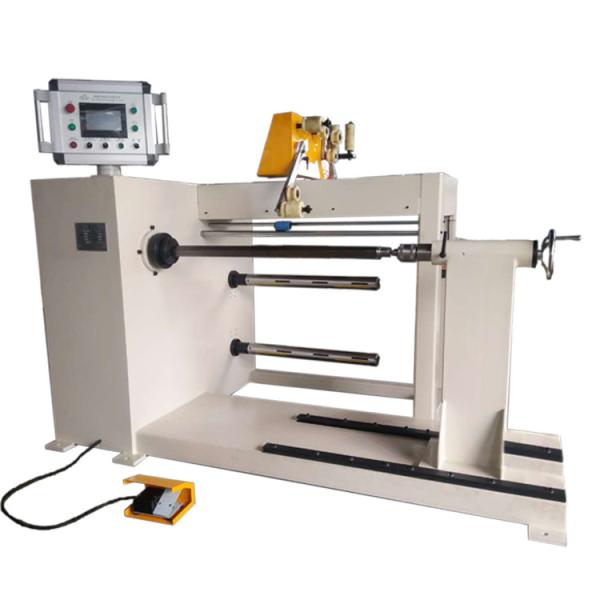

Programmable 800mm Transverse Length Oil Immersed Transformer Coil Winding Machine

Description of transformer coil winding machine ZPX800

Transformer coil winding machine ZPX800 is an automatic winding equipment for winding coils with maximum winding width 800mm. The transformer coil winding machine is mainly used to winding oil type transformer coil and other similar products. The transformer coil winding machine is provided with a servo motor for automatic laying the wire. The wire guide of the transformer coil winding machine is driven by the servo motor, which guarantees the wire guide’s moving precision. Two limiters are placed on the two ends for limiting the wire guide moving. The transformer coil winding machine can wind round wire with 0.3 - 5.0mm and flat wire with maximum size 12x5mm.

Main Features of transformer coil winding machine

Slow starting,
Smooth running
Full function
High automation
Automatic laying wire
Counting the number of turns
Adjustable winding speed
Customizable color

Main Parameters of transformer coil winding machine

Shaft Height from Floor:	900mm
Winding Shaft Size:	40x40x1100mm
Shaft mounting mode:	Welding on flange or demountable or 4-jaw chuck (optional)
Max. Transverse Length:	800mm
Winding Motor Power:	4kw
Winding Speed:	0-160 rpm
Speed Regulation:	stepless
Max. Flat Wire Size:	5X12mm
Round Wire Diameter:	0.3-5.0mm
Max. Wound Coil OD.:	800mm
Max. Capacity:	700kg
Min. Spread Pitch:	0.01mm
Counting Mode:	5-digit counting
Max. Numbers of Turns Preset:	9999.9
Counting Turn Range:	0 - 9999.9
